Dao phay cầu 2me Dormer Pramet S229

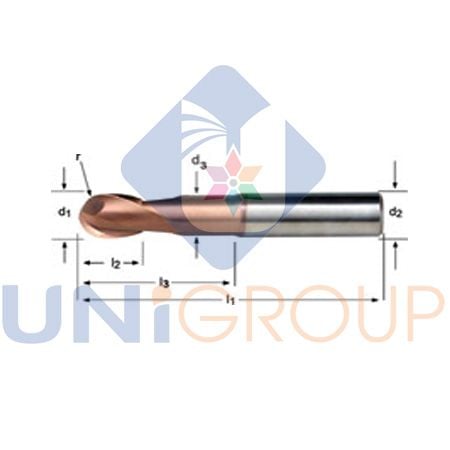

Thông số kỹ thuật dao phay cầu 2me Dormer Pramet S229
Code | Short Description | d1
Ø
mm | r
+0/-0.02
mm | d2
Øh6
mm | l2
mm | l1
mm |
z
| l3
mm | d3
Ø
mm |
S2291.5XD4 | 1.50 mm x 4.0 mm | 1.50 | 0.75 | 4 | 3 | 40 | 2 | 6.0 | 1.4 |
S2292.0XD3 | 2.00 mm x 3.0 mm | 2.00 | 1.00 | 3 | 4 | 40 | 2 | 8.0 | 1.9 |
S2292.0XD4 | 2.00 mm x 4.0 mm | 2.00 | 1.00 | 4 | 4 | 40 | 2 | 8.0 | 1.9 |
S2293.0XD3 | 3.00 mm x 3.0 mm | 3.00 | 1.50 | 3 | 5 | 40 | 2 | 14.0 | 2.8 |
S2293.0XD6 | 3.00 mm x 6.0 mm | 3.00 | 1.50 | 6 | 5 | 50 | 2 | 14.0 | 2.8 |
S2294.0XD4 | 4.00 mm x 4.0 mm | 4.00 | 2.00 | 4 | 8 | 50 | 2 | 20.0 | 3.7 |
S2294.0XD6 | 4.00 mm x 6.0 mm | 4.00 | 2.00 | 6 | 8 | 50 | 2 | 20.0 | 3.7 |
S2295.0XD5 | 5.00 mm x 5.0 mm | 5.00 | 2.50 | 5 | 9 | 50 | 2 | 20.0 | 4.6 |
S2295.0XD6 | 5.00 mm x 6.0 mm | 5.00 | 2.50 | 6 | 9 | 50 | 2 | 20.0 | 4.6 |
S2296.0 | 6.00 mm | 6.00 | 3.00 | 6 | 10 | 50 | 2 | 20.0 | 5.5 |
S2298.0 | 8.00 mm | 8.00 | 4.00 | 8 | 12 | 64 | 2 | 30.0 | 7.4 |
S22910.0 | 10.00 mm | 10.00 | 5.00 | 10 | 14 | 70 | 2 | 32.0 | 9.2 |
S22912.0 | 12.00 mm | 12.00 | 6.00 | 12 | 16 | 75 | 2 | 38.0 | 11.0 |
S22914.0 | 14.00 mm | 14.00 | 7.00 | 14 | 32 | 90 | 2 | 44.0 | 13.0 |
S22916.0 | 16.00 mm | 16.00 | 8.00 | 16 | 32 | 90 | 2 | 46.0 | 15.0 |
